|Model NO.||EN source|
|Production Scope||Parts Production Line|
|Model specification||30～60 stations|
|After-sales Service||3-Year Warranty|
01 The Product Introduction of Foaming Machine Production Line for Stainless Steel Water Tank :
This equipment is a special foaming machine, it is suitable for the industries of the solar water heater, electric water heater, air source and product tank. This equipment have some characters including only spend an small place, can fission operation, high flexibility, easy to operation, arbitrary combination, high efficiency, well effect of foaming. It is suitable for medium-sized or small enterprises.
Production line for 30-85 working position (to be confirmed groud rail station solar cycle foaming production line, the U-shaped by the motor drive the speed reducer. The production line is mainly composed of manual clamping, manual jam. Circular drive. (fixture clamping ) manual filling, heating cycle, manual and curing the next bubble, and other processes of the composition. The production lines can be continuous work, can also be action cycle to work. Step-by –step with compact structure, simple operation. smooth transmission, high production efficiency. it is widely used in batch production of solar –energy foam .
02 Product Features:
The production line is mainly composed of manual clamping, manual jam. Circular drive. (fixture clamping) manual filling, heating cycle, manual and curing the next bubble, and other processes of the composition.
Filling in the form: vertical manual filling
03 Technical Parameters:
Model specification: 30～60 stations
Rated voltage: 380V
The power rating: 50KVA
Compressed air: 0.5Mpa
Filling in the form: vertical manual filling.
Filling media: POL + ISO (CFC11 or HCFC141b).
Working speed, about 60second ,(depending on worker , proficiency)
Working station: 60
The gas capacity: 1 / 2 "(0.5MPa)
Oven temperature: 50 ℃ ± 10 ℃
Capacity: about 50KW (380V, 50HZ)
The curing time: ≥ 20min
Electrical programming is imported.
Electrical parts warranty for one year.

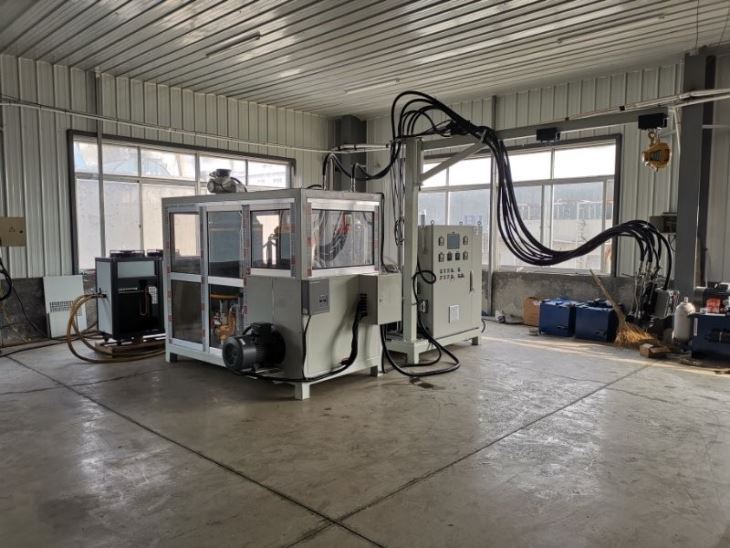

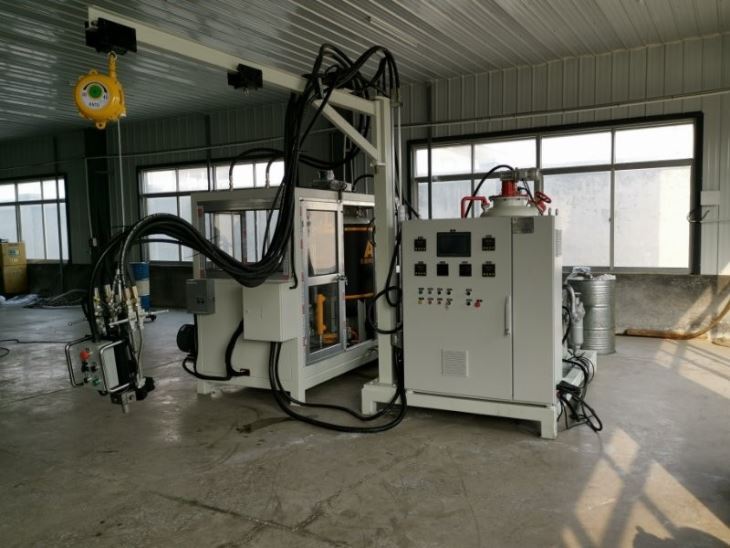

04 Product Photo:
