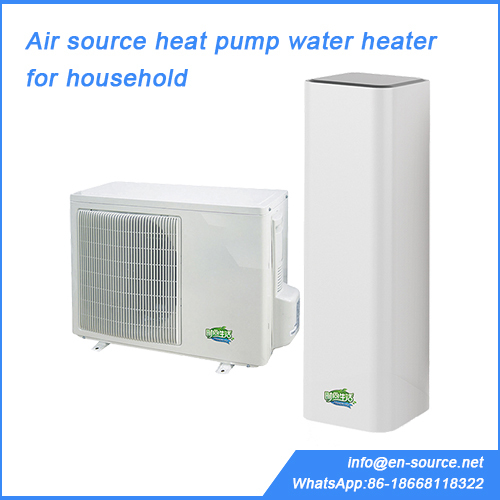

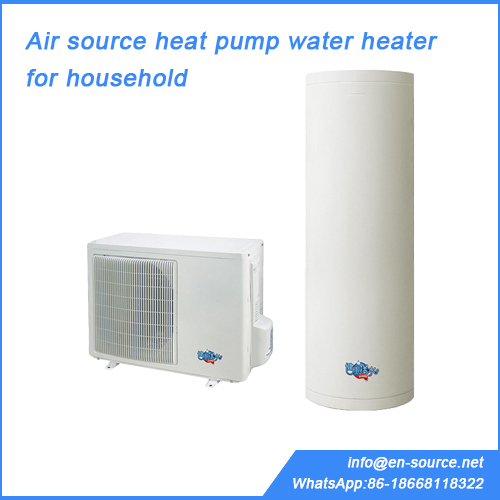

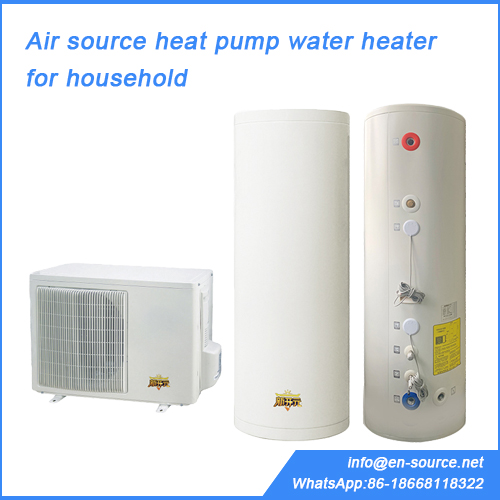

Air source heat pump water heater for household
Xinran's continuous investment in research and development has enabled us to possess the world's advanced technology in the air energy water heater industry. Relying on key engineering design and rich manufacturing experience, we continuously optimize and improve our brand new life aesthetics, integrating with technological strength, and bringing customers higher process quality and more mature user experience and enjoyment. Our higher configuration products bring higher water temperatures. The standards of excellence in materials and accessories make every product of Xinran a masterpiece of craftsmanship
(一)Air source heat pump water heater details
Air source heat pump water heater for(of) |
||||||

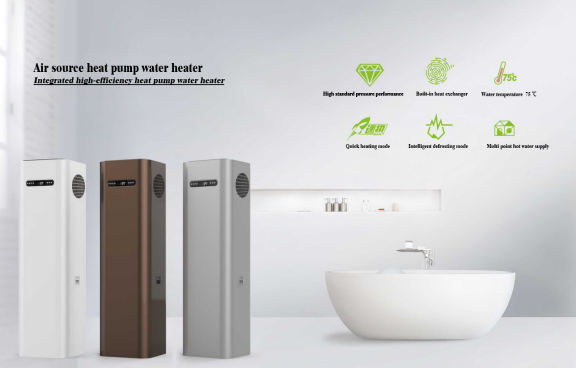

Integrated air source heat pump water heater |
||||||
Model JDLKD40/120L JDLKD40/150L JDLKD40/180L JDLKD40/200L JDLKD55/260L JDLKD55/300L |
||||||
power supply |
220~240V50Hz |
220~240V50Hz |
220~240V 50Hz |
220~240V50Hz |
220~240V 50Hz |
220~240V50Hz |
Water tank specifications 120L 150L 180L 200L 260L 300L |
||||||
Applicable number |
1-3 |
23 |
3-4 |
3-4 |
4-5 |
5-6 |
Customized heat 1730W 1730W 1730W 1730W 2500W 2500W |
||||||
Rated input power |
425W |
425W |
425W |
425W |
618W |
618W |
Electric-heating power |
2000W 2000W 2000W 2000W 2000W 2000W |
|||||
Maximum Input Power |
2760W 2760W 2760W 2760W 3050W 3050W |
|||||
Outlet water temperature 38℃-75℃ |
||||||
noise |
≤43 dBIA] |
≤43 dB(A) |
≤43dB(A) |
≤45 dB(A) |
≤45 dB(A) |
45dB(A |
Overall dimensions |
520×1440mm |
520×1650mm |
520×1860mm |
580×1690mm |
650×1750mm |
650×1900mm |
Test conditions
1. Rated hot water: ambient dry bulb temperature: 20 ℃, wet bulb temperature: 15 ℃, initial temperature: 15 ℃, final temperature: 55 ℃;
2. Due to product improvements, the parameters in the table are subject to change without prior notice;

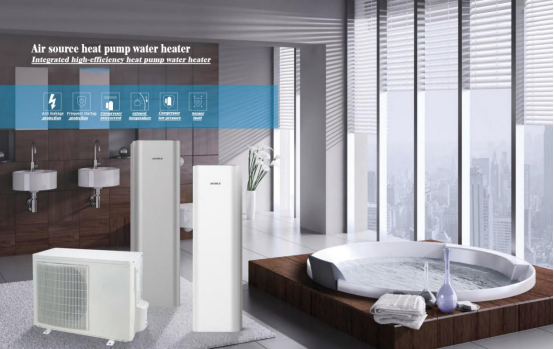

(二)Air source heat pump water heater advantage
(1) Anti leakage protection
(2) Frequent startup protection
(3) Compressor overcurrent protection
(4) Compressor exhaust temperature protection
(5) Compressor low pressure protection
(6) Sensor fault protection

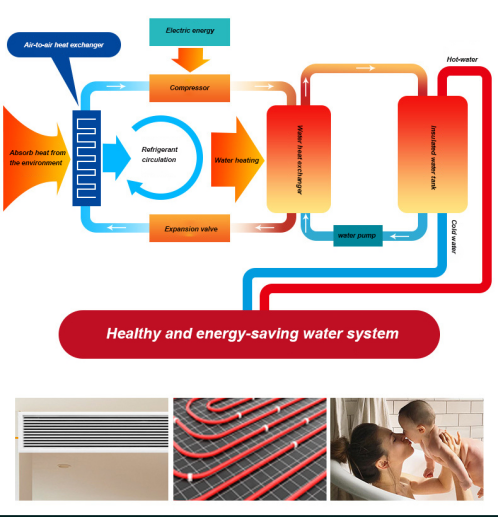

(三) Air source heat pump water heater Structural principle
A heat pump is an energy-saving device that utilizes high-level energy to flow heat from a low-level heat source to a high-level heat source. Like a pump, a heat pump can convert low-level heat energy that cannot be directly utilized (such as air, soil, water containing heat energy, solar energy, industrial waste heat, etc.) into usable high-level heat energy, thereby achieving the goal of energy conservation.
(四) Air source heat pump water heater Core components
(1) High sensitivity electronic expansion valve
Adopting the most advanced digital flow regulation technology of the Sanhua brand in the industry, the unit can be started at a light load with a second speed induction, accurately controlling the refrigerant flow rate, without static overheating, and the ambient temperature is suitable for a wider range, effectively reducing compressor energy consumption and extending the service life of the unit.
(2) Efficient heat pump compressor
International brand heat pump compressors still have strong heating performance in low-temperature environments, with a lifespan of up to 15 years. They are efficient, silent, and low vibration, with low power consumption and more stable performance
(3) Efficient integrated hydrophilic aluminum foil heat exchanger
Integrated molding, perfect fitting of steel pipe fins, greatly improving heat exchange efficiency.
(4) Double bearing waterproof motor
Matching the wind blades, perfectly silent and efficient wind blade optimization design, all copper motor can effectively reduce heat loss and extend the service life of the unit
Copper motors have excellent operating performance
(5) Ultra strong anti-corrosion 304 stainless steel inner liner
Adopting professional argon arc welding process, it has high strength and can withstand 20000 impact forces
(6) One click sewage discharge
Clean and worry free
(7) 50mm thick
