Model NO. | EN source |
Name of production line | LPG Cylinder Machinery Production line |
Cylinder Specification | Three station ,high-precision, full-automatic |
Production line standard | Non standard industrial production line |
After-sales Service | 3-Year Warranty |
Dimension(L*W*H) |
2000*1900*1500mm |
Voltage |
380V |
Power |
35KW |
Zinc Metalizing Wire |
2mm |
Raw Coil |
2.5~3mm, Q235, HP295 |

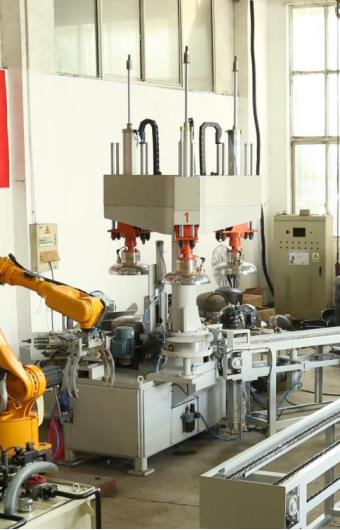

The following figure shows the company's new three-station manipulator automatic LPG production line, the advantages of changing the production line compared with the traditional manual feeding are:
(1) the original three-station mode, subverting the disadvantages of traditional multi-equipment and multi-tasking, greatly improving efficiency,
(2) the addition of robots greatly introduces labor costs, which improves the stability of products,
(3) high-precision automatic ring seam welding machines, which have great advantages in the same industry in terms of quality and time.
We are the Manufacturer of LPG gas cylinder Production Line, own independent factory. We have been engaged in this business since 2004. Also, We have been export for India, Vietnam, Russia and finished more than 60 factories for different customers with abundant experience in this area. We have provided many LPG companies around the world with corresponding production lines. Besides, our engineers have rich experience in debugging machines abroad.
LPG Cylinder Body Forming
Foot-ring welding production line
Guard-ring welding production line
Straight seam welding line
Automatic circumferential welding line
Cylinder surface treatment
Air tightness testing and printing
Foot-ring/Base forming line
Guard-ring/Collar/Handle forming line

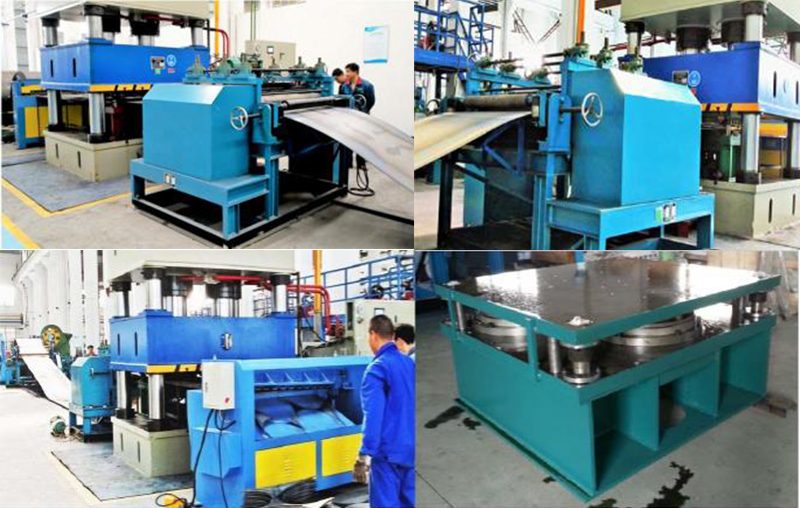

This production line is used for blanking of steel coil and cutting to round steel plate, using computer optimization design, with high mechanical strength, operating smoothly. Control parts adopt digital circuit, main components and parts: PLC, touch screen, servo motor etc. select with international famous brand. Feeding length is controlled by servo motor, with high accuracy. Blanking die can realize double or three blanking. The material of die is Cr12Mov, processed by vacuum hardening. The whole production line is with high automation, stable operation, low failure rate, convenient maintenance.
This machine is used for deep drawing of LPG cylinder round plate into dish end, adopt computer optimization design of is simple, with high mechanical strength, operating smoothly, sensitive and reliable, affordable. Mechanical-electrical-liquid integration and imported PLC control. Selected with drawing die of nodular cast iron or Cr12. High dimensional accuracy, long workable longevity ,simple and convenient operation, high production efficiency.

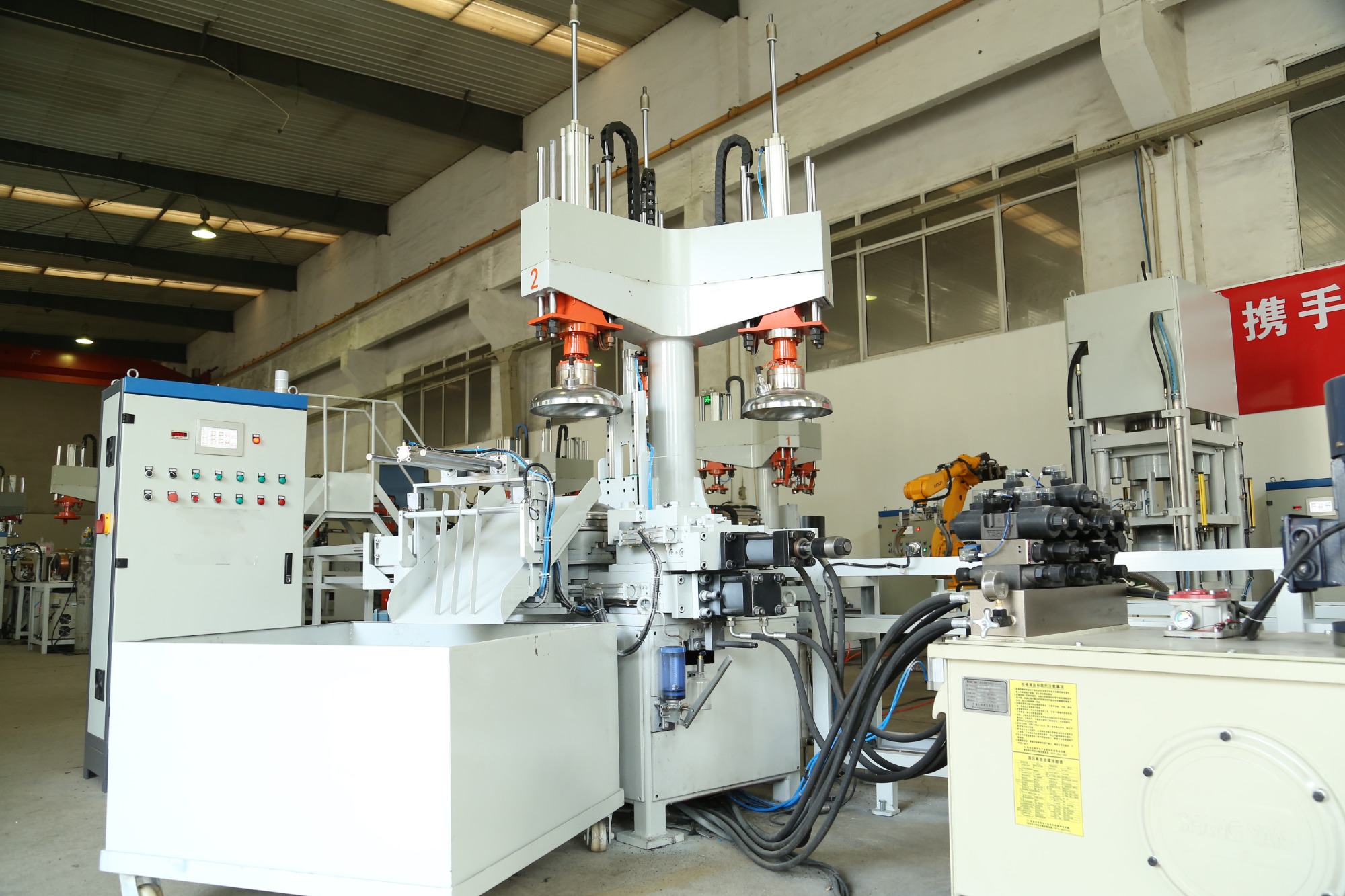

The machine adopts a three-station rotator. The equipment consists of a main engine, a hydraulic tensioning mechanism, a three-station rotator, an incision outer knife mechanism, an incision inner knife mechanism, a shrinking outer knife mechanism, a shrinking inner knife mechanism, a polishing mechanism, and electrical appliances. Control part, pneumatic part, etc.

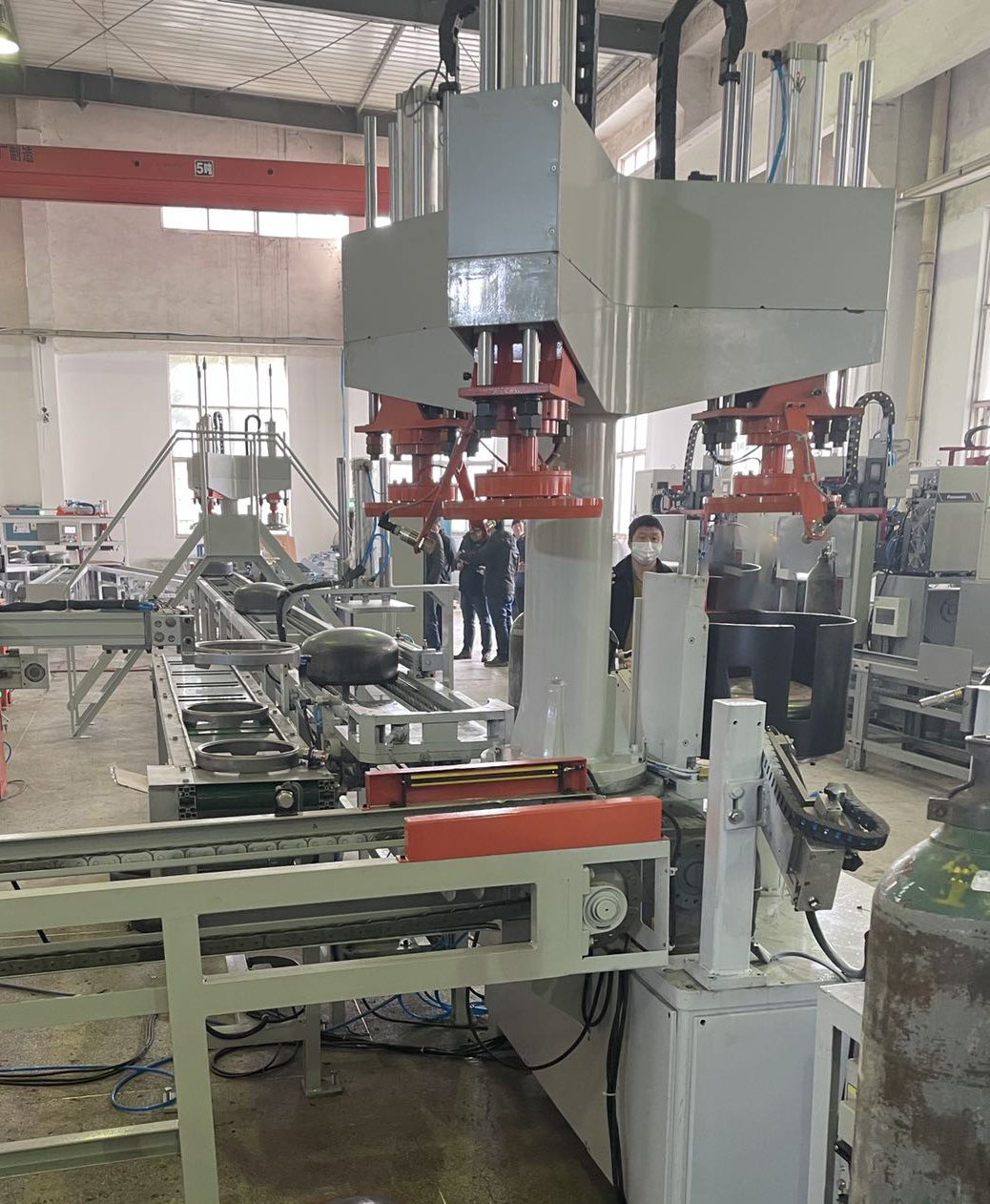

The machine adopts a three-station rotator, and the equipment consists of a main engine, a three-station rotator, an automatic welding mechanism for the welding torch, a mask lifting mechanism, an automatic bottom ring feeding line, a welding power source, a wire feeder, electrical control and pneumatic parts, etc. composition.
This production line is used for blanking of steel coil and cutting to round steel plate, using computer optimization design, with high mechanical strength, operating smoothly. Control parts adopt digital circuit, main components and parts: PLC, touch screen, servo motor etc. select with international famous brand. Feeding length is controlled by servo motor, with high accuracy. Blanking die can realize double or three blanking. The material of die is Cr12Mov, processed by vacuum hardening. The whole production line is with high automation, stable operation, low failure rate, convenient maintenance.

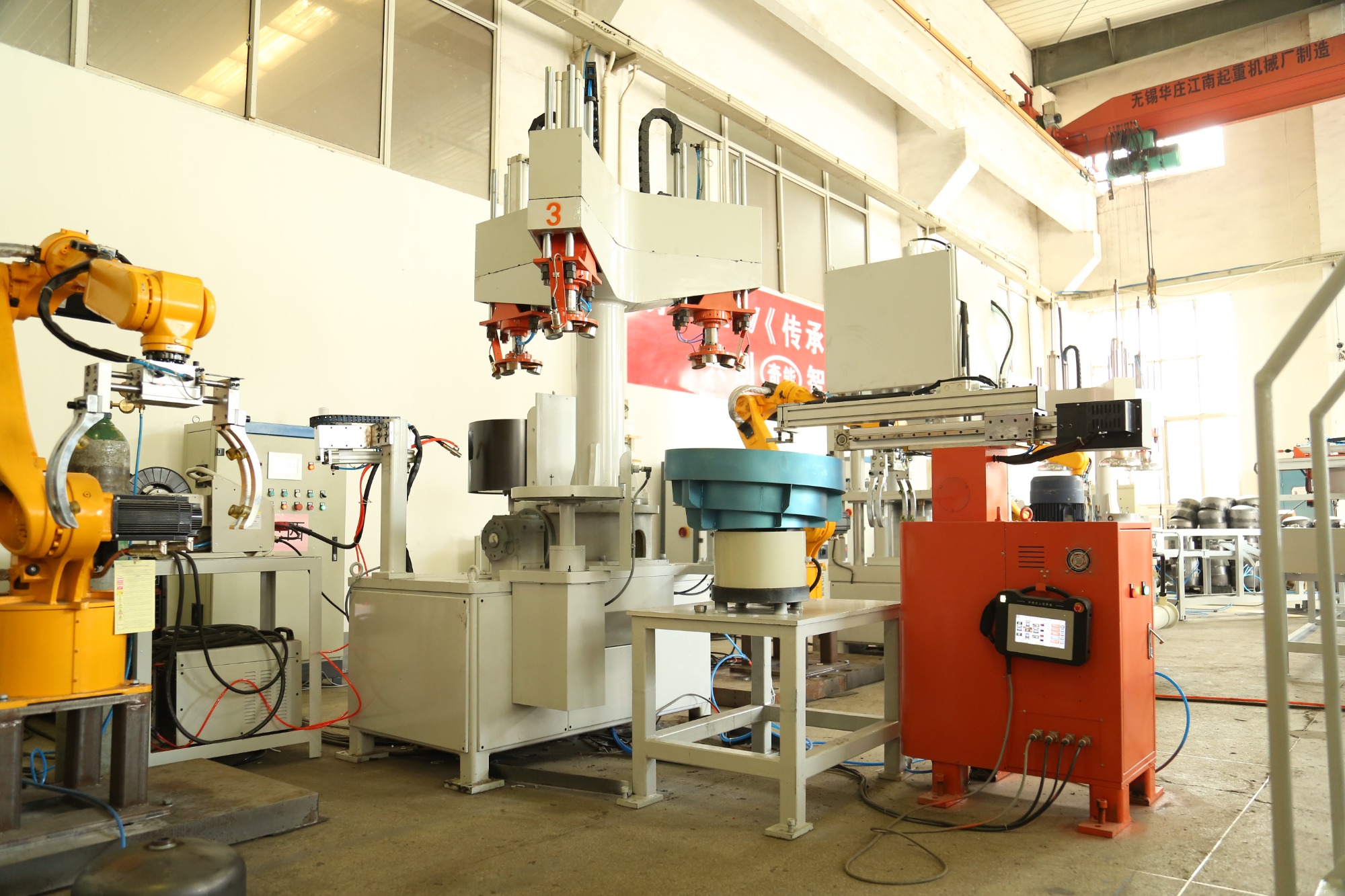

The machine adopts a three-station rotator, and the equipment consists of a host, a three-station rotator, an automatic welding mechanism for the welding torch, a mask lifting mechanism, an automatic vibration plate, a welding power source, a wire feeder, an electrical control and a pneumatic part, etc.

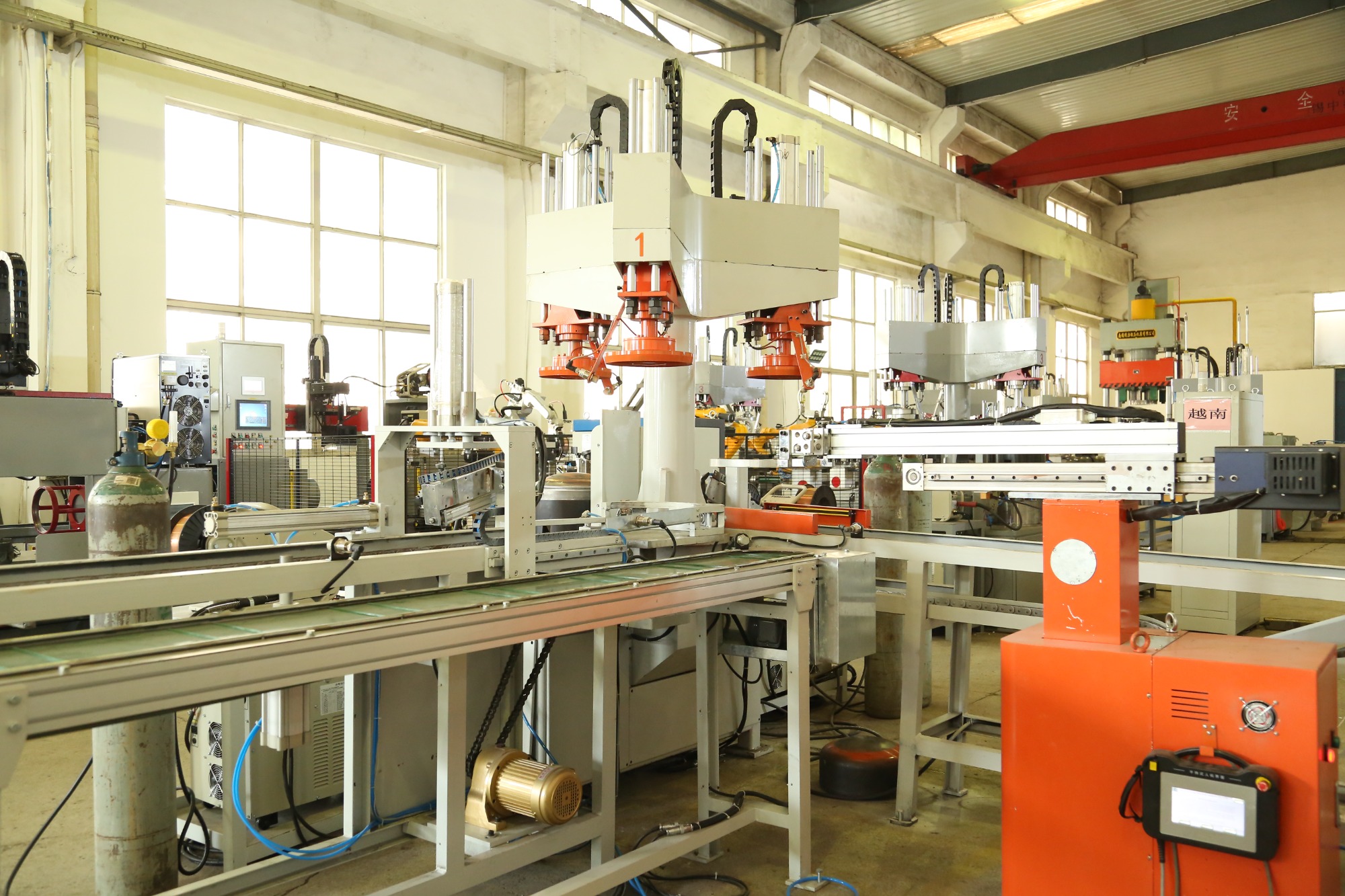

The machine adopts a three-station rotator, and the equipment consists of a main engine, a three-station rotator, an automatic welding mechanism for the welding torch, a mask lifting mechanism, an automatic shield feeding line, a welding power source, a wire feeder, electrical control and pneumatic parts, etc. composition.

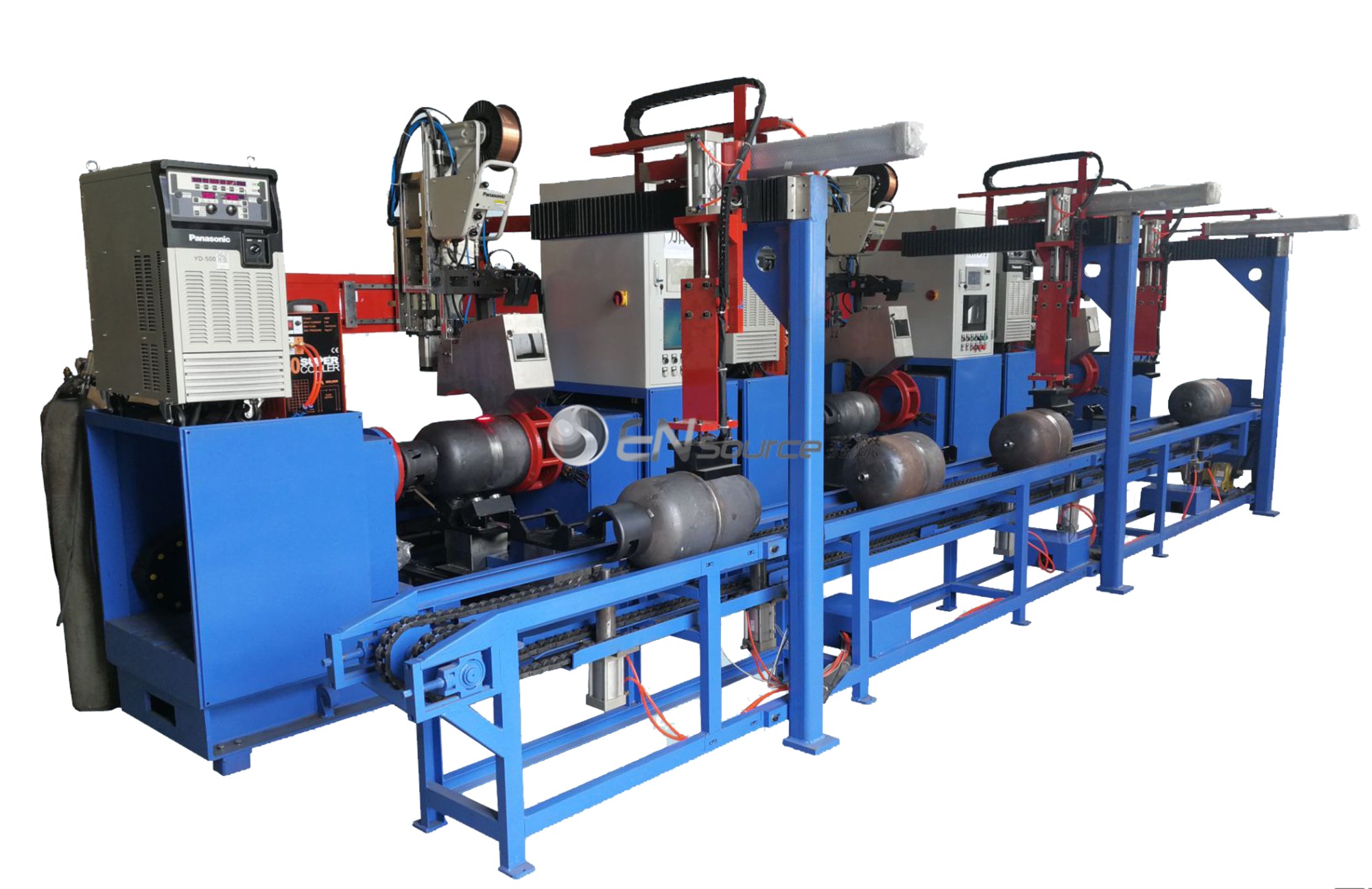

The equipment consists of frame, welding power source GS5-500 (special), welding seam vision laser double tracking system, circulating cooling water tank, clamping mechanism at both ends, turbine worm reducer, magnetic suction manipulator, three-station feeding and discharging mechanism , feeding conveyor line, discharge conveyor line, gas control system, welding torch cooling system, electrical control system, etc.
